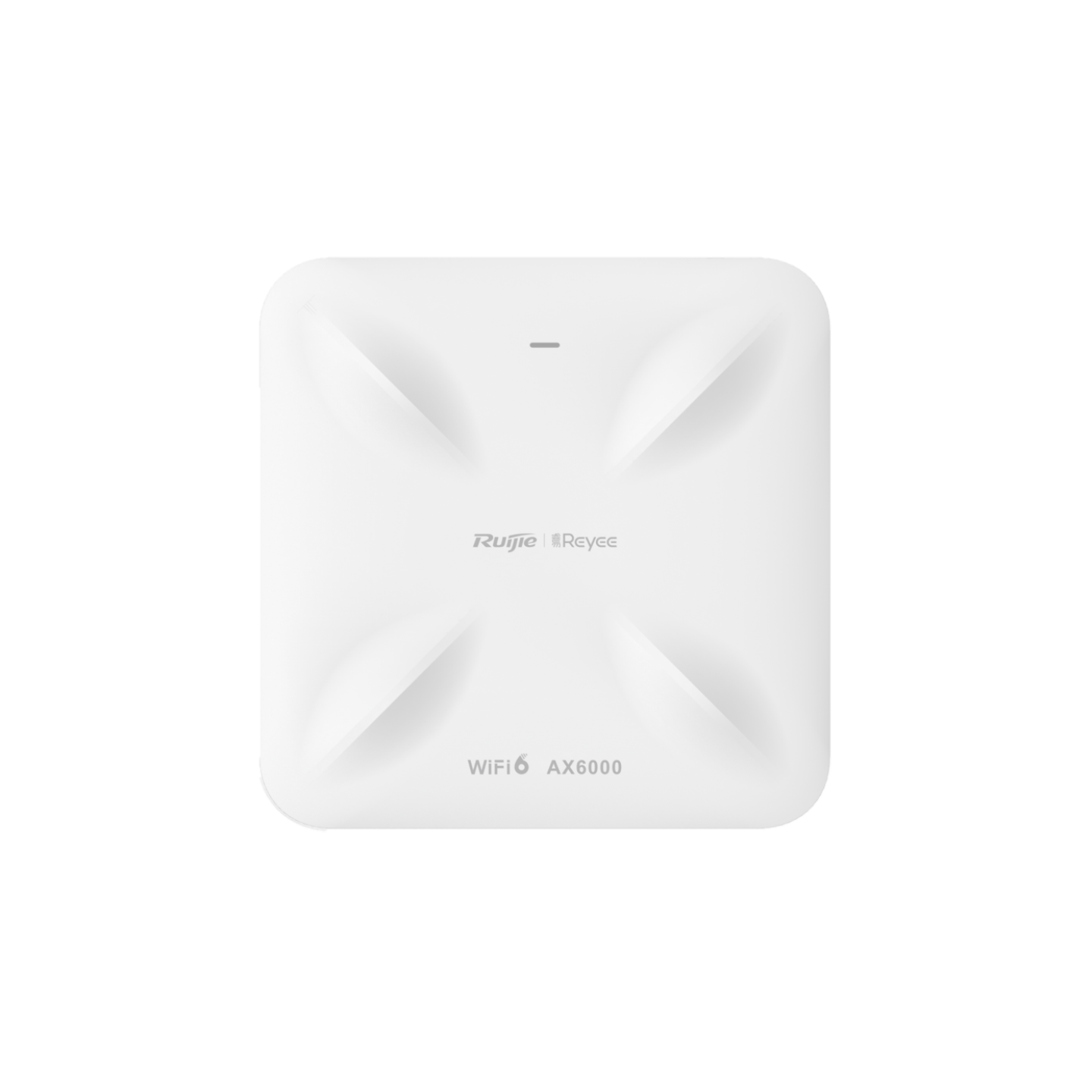

RG-RAP2260(H) Reyee Wi-Fi 6 AX6000 High-density Multi-G Ceiling Access Point


Highlight Features
- Build ultra-fast and high-density Wi-Fi with 5.95Gbps throughput.
- Client connections over 500, higher practical performance as well.
- Boost Internet speed with 5Gbps uplink for the future.
- Easily install extra AP with Reyee Mesh technology.
- Support standalone captive portal, easy to enable Wi-Fi authentication.


Product Type
Ceiling AP

Wi-Fi Radio
Radio design
Dual-radio
8 spatial streams
● 2.4 GHz: 4 x 4, MU-MIMO
● 5 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate
5950 Mbps
6 GHz wireless data rate
No
5 GHz wireless data rate
4803 Mbps
2.4 GHz wireless data rate
1147 Mbps


Antenna
2.4 GHz: 4 built-in omnidirectional antennas
5 GHz: 4 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
230 mm x 230 mm x 49.5 mm (9.06 in. x 9.06 in. x 1.95 in.) (excluding the mounting bracket)
Color
White
Weight
≤ 1.36 kg (3.00 lbs.) (without packaging materials)


Port Specifications
Number of 10/100/1000/2500BASE-T ports
2


Power Supply and Consumption
Power supply
● DC power adapter
● PoE+/PoE++
Note: If both the DC power adapter and PoE+/PoE++ are available for power supply, the DC power adapter is preferred.
Local power supply
Yes, one DC power connector (48 V, 1 A)
Dimensions of the DC connector
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget
No
Maximum power consumption
40 W


Environment and Reliability
Operating temperature
0°C to 40°C (32°F to 104°F)
Mounting options
Ceiling/Wall
IP rating
No


Software Specifications
WLAN
Maximum number of associated wireless clients
64 (2.4 GHz)
512 (5 GHz)
512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
300
