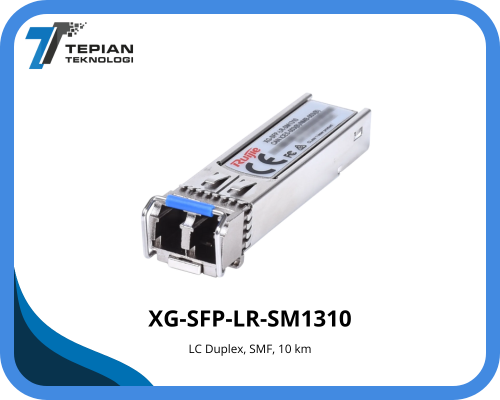

XG-SFP-LR-SM1310 10GBASE-LR SFP+ 1310-nm 10-km DOM Duplex LC SMF Optical Transceiver Module.

Highlight Features
-Max. power consumption 1.5 W
-Hot pluggable SFP+ MSA compliant
-Digital optical monitoring capability for strong diagnostic capabilities
-Compliant with IEEE 802.3z Gigabit Ethernet
-Class 1 Laser safety and RoHS compliant

Data Rate : 10.3125 Gbps
SFP+
Connector type : Duplex LC
Bit error ratio (BER) : 1.00E-12
Power consumption : ≤ 1.5 W

Transmitter Optical Parameters
Wavelength : 1310 nm
Max. transmit power (AVG) : 0.5 dBm
Min. transmit power (AVG) : –8.2 dBm
Min. extinction ratio : ≥ 3.5 dB

Receiver Optical Parameters
Receive sensitivity (OMA) : < –12.6 dBm
Overload optical power (AVG) : 0.5 dBm

Environment and Reliability
Operating temperature : 0°C to 70°C (32°F to 158°F)
Operating humidity : 10% RH to 90% RH
Storage temperature : –40°C to +85°C (–40°F to +185°F)
Storage humidity : 10% RH to 90% RH
