Spesifikasi

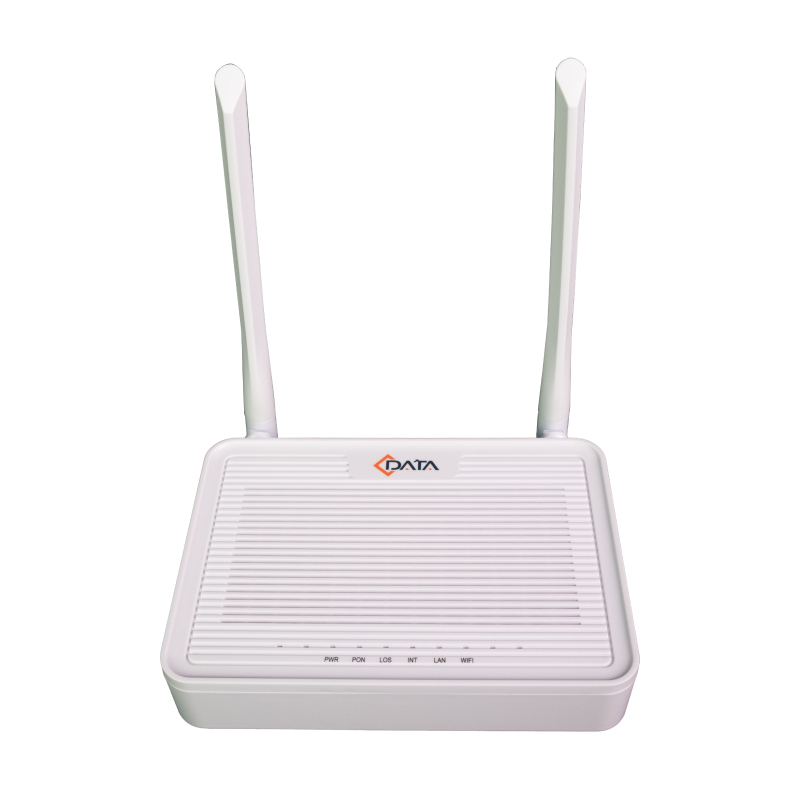

Model FD511GW-R476
Dimensions 125mm(L) *107.5mm(W)*30.5mm (H)
User Port (LAN) RJ-45 connector
1*10/100/1000Mbps adaptive Ethernet port
Full/half duplex
Auto MDI/MDI-X
Indicators PWR / PON / LOS / LAN / INT / WIFI
PON Mode EPON : 1000BASE-PX20+ symmetric
GPON : FSAN G.984.2 standard,Class B+
PON Rate EPON : 1.25Gbps downstream/upstream
GPON : 2.488Gbps/1.244Gbps downstream/upstream
Wavelength Transmit: 1310nm
Receiver: 1490nm
Receiving sensitivity EPON : -27dBm
GPON : -28dBm
Saturated power EPON : -3dBm
GPON : -8dBm
Transmitting power EPON : 0~4dBm
GPON : 0.5~5dBm

WIFI performance parameters
IEEE802.11b/g/n(2.4G)
Max rate: 300M(2.4G)
MAX TX power 2.4G:17dBm

Environment
Working temperature 0 to 40ºC
Operating humidity 10% ~ 90% (Non-condensing)

Power
External 12VDC/0.5A power supply adapter
Power consumption : ≤4.2W
