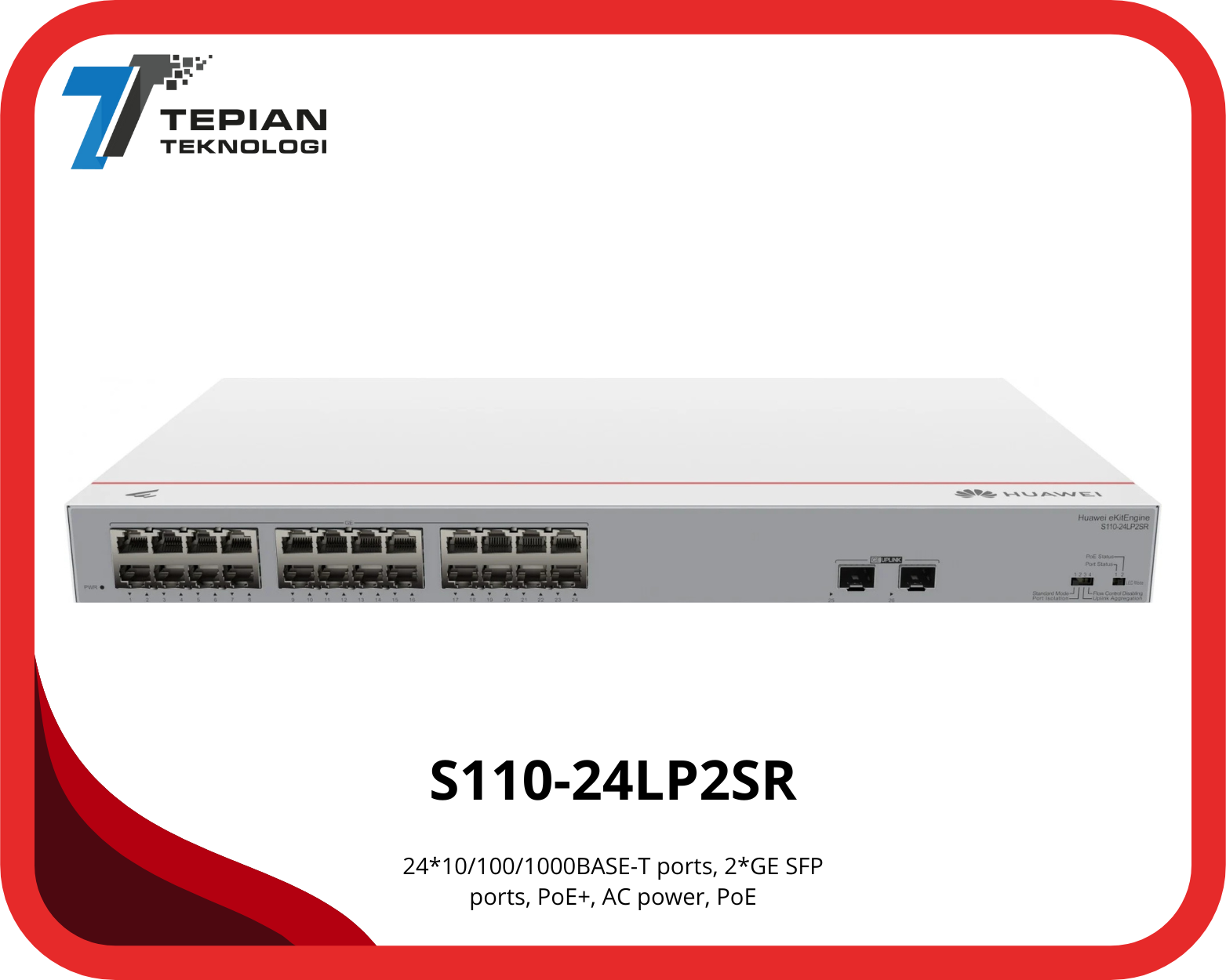

24 x 10/100/1000BASE-T ports, 2 x GE SFP ports | PoE+ | Packet forwarding rate: 38.69 Mpps | Switching capacity: 52 Gbit/s


Switching capacity 52 Gbit/s
Packet forwarding rate 38.69 Mpps
GE RJ45 24 (PoE+) (1G/100M/10M)
PoE Supported
Maximum PoE power consumption [W] 124
Certification EMC certification Safety certification Manufacturing certification
Chassis material Metal
Static power consumption [W] 13
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)
Installation type Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)] 3.2 kg (7.1 lb)
Weight with packaging [kg(lb)] 3.7 kg (8.16 lb)
Typical power consumption [W] 24
Maximum power consumption [W] Without PoE: 24 W Full PoE load: 165 W (PoE: 124 W)
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Power supply mode AC built-in
Input voltage range [V] AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV
Heat dissipation mode Natural heat dissipation
