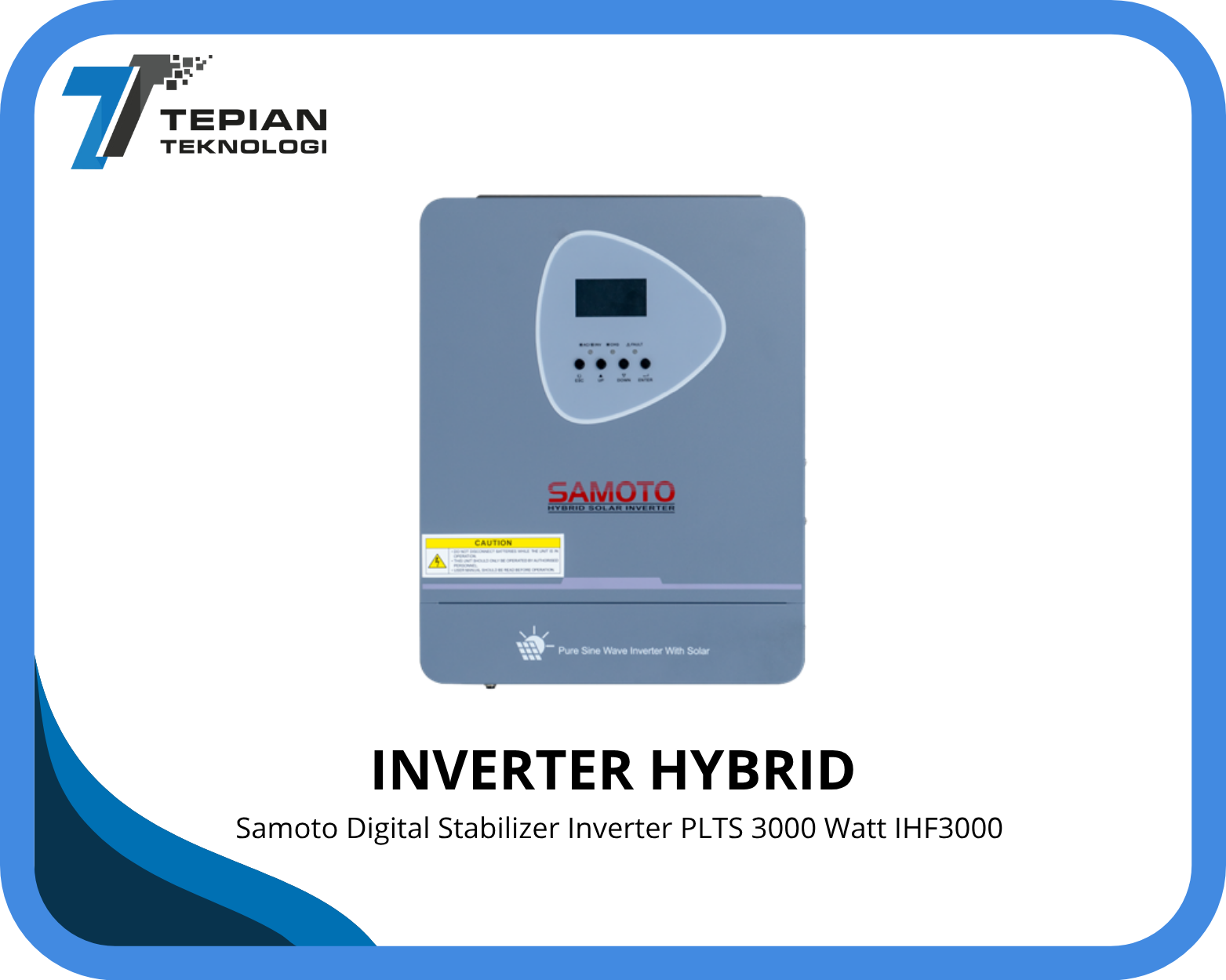

Spesifikasi inverter PLTS 3000 Watt (IHF3000):
- Model: IHF3000
- Capacity (VA): 3000VA
- Input Standard: L+N+PE
- Rated Output Power: 3000W
- Rated Input Voltage: 220/230/240VAC
- Voltage Range: 90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode)
- Frequency Range: 50/60Hz (Auto Adaptive)

- Peak Power : 6000VA
- Output Voltage : 220/230/240VAC±5%
- Output Frequency : 50/60Hz±0.1%
- Rated Voltage : 24VDC
- Constant Charging Voltage (configurable) : 28.2VDC
- Floate Charging Voltage (adjustable) : 27VDC
- PV Charging Method : MPPT
- Max. Input Power of PV : 3000W
- MPPT Input Voltage Range : 40~500VDC
- Optiomal Vmp Operating Range : 300~400VDC
- Max. PV Input Voltage : 500VDC
- Max. PV Input Current : 13A
- Max. PV Charging Current : 100A
- Max. Mains Charging Current : 60A
- Max. Charging Current : 100A

- Size L*W*H (mm) : 305*113*417 mm
- Weight Product/+ Box (kg) : 6.54 kg/7.78 kg
