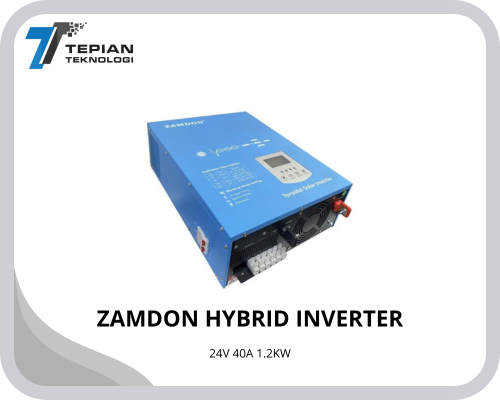

Built-in trafo toroidal
Rated Power: 1.2KW desain kapasitas penuh
output kontinyu(24 hours):960W
Daya Puncak: 3KVA
Voltase Baterai:24V

Input:
1.Bisa dihubungkan ke Genset atau PLN
2.Voltase AC input:145V-275V(220V)
3.Frekuensi AC input:50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
4.Arus pengisian AC:0-10A(Settable)
5.Voltase Max. PV Input:120V(Voc)
6.Voltase PV Input:30V-100V(Vmp)
7.Daya Max. PV input: 1120W


Output
1.Voltase Output(Battery/PV mode):220V±2%/230V±2%/240V±2%
2.Frekuensi Output(Battery/PV mode): 50Hz(45-55Hz)/60HZ(55-65Hz)
3.Gelombang Output: pure sine wave
4.Waktu Transfer:≤4MS
5.Efisiensi Output(Battery/PV mode):>85%
6.Efisiensi Output(AC mode):>99%
7.Voltase Output(AC Model):220V±10%/230V±10%/240V±10%
8.Frekuensi Output(AC Model): Follow PLN input

Working mode: Prioritas Baterai(Prioritas PV)/Prioritas PLN/Mode Hemat Energy

Proteksi: Alarm voltase rendah baterai, proteksi voltase rendah baterai, alarm voltase tinggi
baterai, proteksi voltase tinggi baterai, recovery voltase tinggi baterai, proteksi daya berlebih,
proteksi arus pendek output inverter, dan proteksi temperatur.
